Blain Germany Blain Company
Blain, Germany
Blain Hydraulic was founded by Mr. Roy Blain in 1971 in Heilbronn, Germany.
Blain's company did not have many employees in the beginning and in the first decade it had less than 10 employees, but this trend has increased rapidly.
From the very beginning, Blain Company has been engaged in the production of lifting valves and hydraulic elevators Blain Hydraulic.
The taps produced by Blain company are offered at Blain sales representatives all over the world.
Blain Hydraulic Company in the first years with medium infrastructure and limited manpower.Hydraulic electric valve Produced and marketed EV models to control lifts and elevators.
As demand from the consumer began and in order to meet the ever-increasing demand, the company moved to Heilbronn and continued to expand there.
Then Blain company added KV model lifting solenoid valves to its products.
This action was to get the market of small and home businesses.
L10 pressure valve is introduced as an additional safety valve. This product is now known as UCM-A3 valve.
The Blain Company also received a CSA license to export to North America prior to 1990.
sales representative Hydraulic electric valveBlain Hydraulic Lift & Lift has been offering Blain valves in North America since 1990.

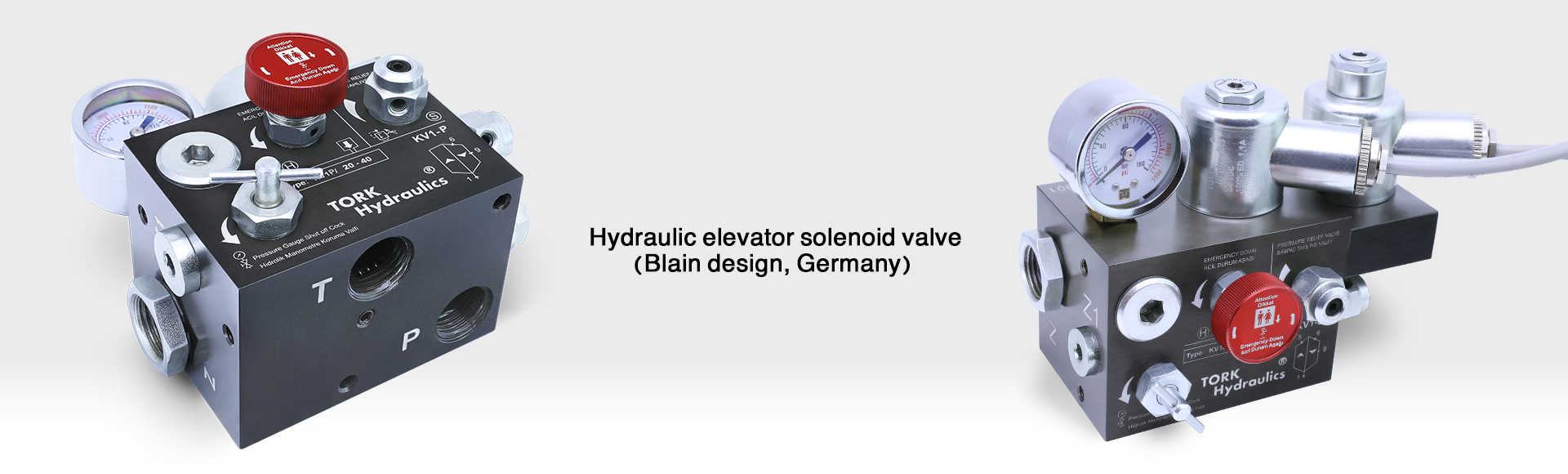

What is a Blaine solenoid valve?
In recent years, the progress of hydraulics has greatly affected the elevator and hoist production industry. Various hydraulic parts used in an elevator play a great role in the performance of this system. One of the important parts used in this system is the hydraulic valve. There are different types of hydraulic valves, each of which has its own application depending on your needs. You can order all these valves through the link below. In the rest of this article from the siteHydraulic crack We will talk more about German Belin lions and share important points with you in this regard.
To order all kinds of electric valve models, you can visit Turk Hydraulic Store website.
Types of Blain
Belin Company offers control valves for elevators in three groups: mechanical, electronic and 3VF. Mechanical bellows valves are the most used and are offered in two series, KV and EV. This type of ball valve has a solenoid function and is also known as electric valve. Bellin mechanical valves have different types and cover all types of elevator applications.

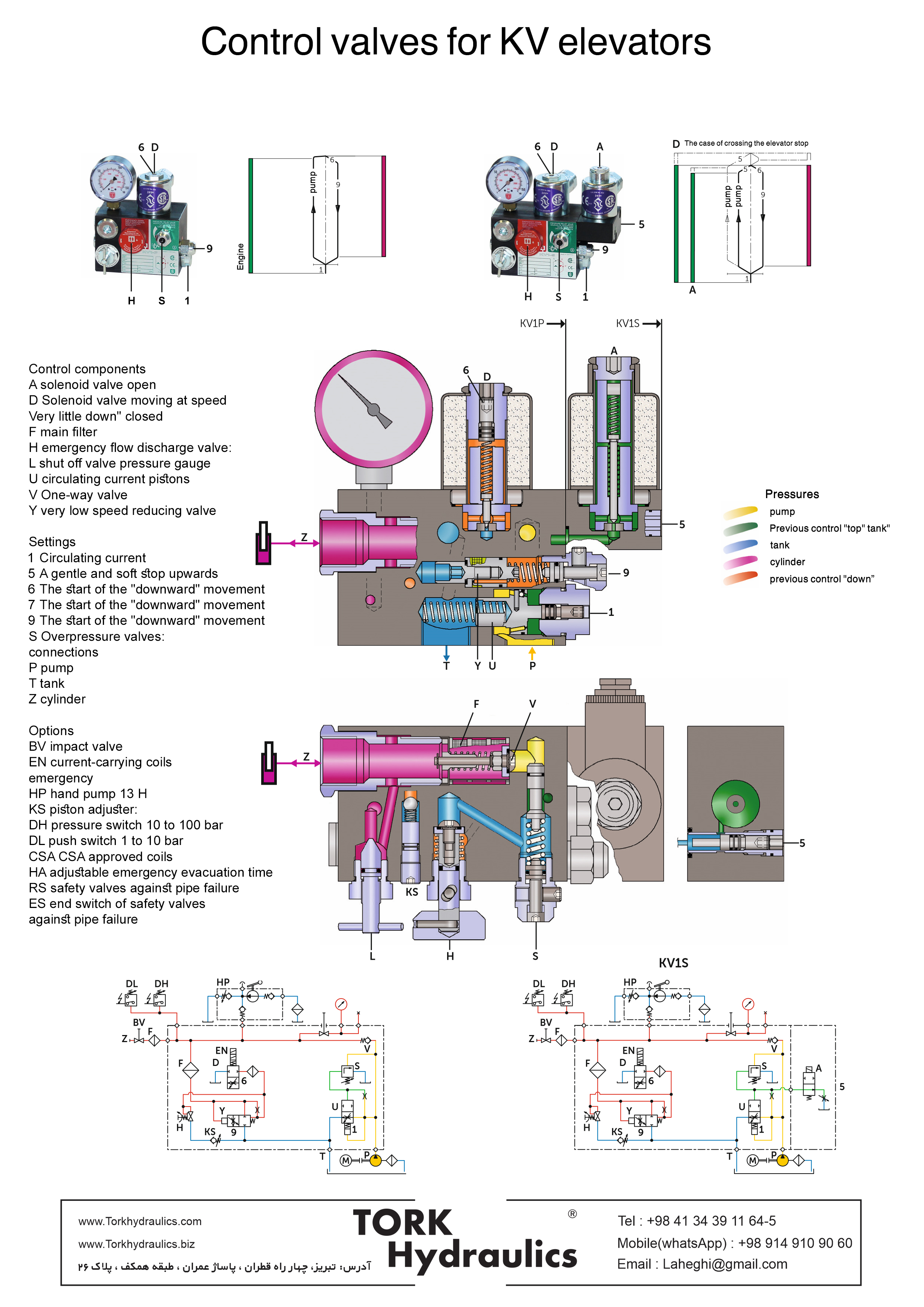

Valves of the KV group
Blain group valves are designed for small home lifts and elevators. This simple single bobbin model to three bobbins are all available in 1/2 inch size. and can be used for devices with a maximum speed of 0.16 m/s.
KV1P single spool valve
Blin single spool valve model KV1P is one of the simple hydraulic Blin valves manufactured by Blin, Germany. Single bobbin ball valves manufactured by Turk Hydraulic Company generally work with 24 V DC voltage and 1.1 amp rated current. This tap is a single bobbin to one Manometer،Adjustment screws andhand valve It is equipped with an emergency and operates with a solenoid. In all kv group valves, the elevator speed should not be more than 16 cm/s.
This small control ball valve works with a spool action that is activated in the downward direction.
The size of the valve is 1/2 inch and is usually compatible with small pumps. The start of movement in the up and down direction, and the stop in the down direction is smooth and without shock.
For more information Blaine's product catalog see that.
KV1S twin spool valve
Blin double bobbin valve model KV1S, which is one of the most popular Blin valves of the KV group of Blin company, is designed for lifters and small elevators. Most elevator manufacturers and experts in this field believe that the two-bobbin ball valve is the best valve to use in the elevator. This model of Bellin valve works with two solenoids. The two-spool ball valve actually has a single-speed function. OneSolenoid It is installed to stop the upward direction so that it can make a soft and smooth stop.
KV2S triple spool valve
KV2S model is one of the most complete control valves of kv group of Blain company. Two solenoids also support two-speed movement for the down direction. In this situation, it is a bit difficult to move the elevator down. Therefore, it has a higher speed in the downward movement of the elevator. This Blain valve is a suitable option for home elevators. The power of this Blinn valve is determined when the jack has a relatively large size for lifting.
Blaine solenoid valve settings
Different models of Blain have their own special settings that must be done knowing the determined movement curve. In fact, every part of the elevator movement can be adjusted in the control valve. One easy way to identify the adjustment screws on any Blaine valve is the small diagram on the valve. Almost the initial settings are done by default by the manufacturer, but it is very easy to reset if necessary. Adjustments must be made by an experienced specialist and according to the manufacturer's instructions. Turk Hydraulic Company has provided all the settings of the Blain valve to its customers in the form of the Blain valve manual.
Warranty of Blain solenoid valve products
All of Blain's products, including single coil electric faucet model KV1P and double coil electric faucet model KV1S design Blain and other store products from the time of purchase for two They are guaranteed for a year for repair and replacement and have after-sales services. The start time of the warranty period for Turk Hydraulic products and after-sales service of each product is equal to the date of the invoice issued by Turk Hydraulic and the registration of the purchase invoice by the customer.
Turkish pneumatic hydraulic store has been serving customers for many years and is trying to order and buy products to make customers feel safe and satisfied. Hydraulic lifting electric valve designed by Germany Blain deliver to the customer in favorable conditions. In case of any problem, "after sales service" will be at your service. Customer satisfaction is our goal.
